四虎在线观看-四虎免费视频-四虎国产精品免费久久5151-四虎在线视频 > 產品中心 > 噴砂機系列噴砂機系列

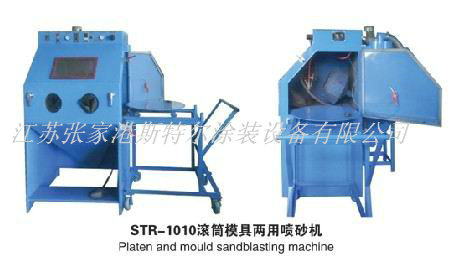

滾筒模具兩用噴砂機

軟件作用 Product features

此機型為兩用型模具及滾筒噴砂機,產品類小工件產品可以批量生產用滾筒來生產提高了生產產量,重型工件可以使用轉臺降低工人的勞動強度,大大的滿足了客戶的需求。

The machine is available mould and roller sandblasting machine, Class products can batch production small workpiece with roller  to improve manufacturing output, Heavy workpiece can use turntable to reduce the labor intensity, Fully meet the customer's requirements.



一般枝術因素 Main technical parameters



設備材質 Model

STR-1010滾筒模具兩用噴砂機

運轉艙寸尺 Internal size(mm)

1000×1000×790

一整臺機器的大小 Complete machine size(mm)

1000×1540×1830

電壓 Power

220V 50Hz

電腦照明電器燈 Machine floodlight

220V 13W高效燈

分離法器調速電機 Separator motor

220V 50Hz 550W

分開器功率 Separator air volume

8.5m3/min

減小熱空氣源 Compressed air source

2-8bar(kg/cm2)

轉臺直徑怎么算 Turntable diameter(mm)

500

轉臺承載 Turntable bearing

150kg

滾簡載重 Roller bearing

10-30Kg

產品凈重量 Machine net weight

380 kg
