無塵自動循環回收噴砂機系列

◆新產品的特點 Product features（請向下預覽有大量量實例圖片供基準）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”廠區氣粉層衛生管理規定。砂料、粉層半自動回收公司、轉移、循環系統采用，辦公廠房干凈整潔無粉層的環境污染。設備環保健康開發，在很大程度上可以改善了施工工人的工作撓度和施工的環境備有噴吹閥安裝，可智能的快速清理油煙凈化器芯灰層。嵌入分水油煙凈化器器。可對壓縮視頻氣體采取重新灰色收入分開。智能的裝料，將吸砂頭復制到砂料中，開機真空設計泵設計將智能的裝料。PLC可程序語言控制（選用），料位警報基本功能(配選)。設置有調壓旋轉開關、噴吹閥快捷。穩定的的氣控系統設計與金剛石工具閥。崗位圓的半徑20-70米，外壁處置層級達Sa2.5-3級。選配健康安全地面防水電壓插板旋轉開關24v電源線插銷，簡單快捷工作。選配操縱電壓國際航空插板旋轉開關24v電源線插銷簡單快捷工作。獨具特色形象的防爆操縱面版與電子管理系統箱。運營維護與檢測有點簡單快捷。車式箱殼構成，防雨罩防爆，活動簡單快捷。箱殼門邊框主要包括簡單快捷門瑣快速連接，折裝簡單快捷。車把旋轉開關操縱（電子管理系統DC24V）。一機三用，體現了發展式、化工吸砂器、環保性型三種方法產品的基本功能。噴砂設備主機主要采用特別掌控管路，操作氣壓在0.2Kpa-0.8Kpa時間范圍圖內符合各種自動調節，可實現差異工件的的噴砂工藝流程規范要求。用到時間范圍圖：防銹、除涂料、焊接縫隙處理（包含鋁合金焊接縫還有其周圍的去黑、去焊渣加工外理）去振紋、飛邊、脫色皮、鋁合金，鋁板外壁的古韻型亞光加工外理（耐污性適合、可遮擋住刮痕）、去混疑土、石雕外壁污圬等加工外理。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆主要能力產品參數 Main technical parameters

機械設備款式 Model	STR-B型無塵自動循環回收式噴砂機
運轉開關電源 Work power	380V 50HZ
自然空氣經濟壓力 Air pressure	5-7kg/cm2
耗氣量 Gas consumption	3m3/min
直流電機最大功率 Motor power	4kw
操作率 Work efficiency	6-10m2
崗位半經 Work radius	10m 可結合要加長版，關鍵資訊售后
操作形態 Work form	定時循壞收舊Automatic cycle recovery
徹底清除等級分類 Clean level	Sa2-3
有粗糙度 Roughness	60μm以內
體重 Weight	260kg
外觀簡約時尚尺碼 Shape dimension	1380×830×1700mm
砂料標準 Sand material specifications	20-100#及以上（1.0mm-0.04mm）

◆適于的范圍 Applicable scope

1.節能必須高且無其它凈化的設備的情況下；

2.辦理會員等級較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

便用區域：除銹防銹、除涂漆焊接縫清理去毛邊、飛邊、防氧化皮不銹鋼材質、型材外壁的典雅型亞光凈化加工（耐污性好一點、可掩蓋劃痕）去水泥墊塊土、石雕漆層污圬等凈化加工。

（到底數據資料可符合A型或轉達我機構）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 企業產品優點 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已解壓縮，效果只是便捷野外建筑施工挪動便捷，很大的變低了勞功構造，如果凈化處理吸收率在中國一類型成品熱鍵；取得之所急業主的一樣的大力支持，并都已經取得了多方面的線上推廣和選擇！（實際的內容可參考價值A型或詳詢我機構）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

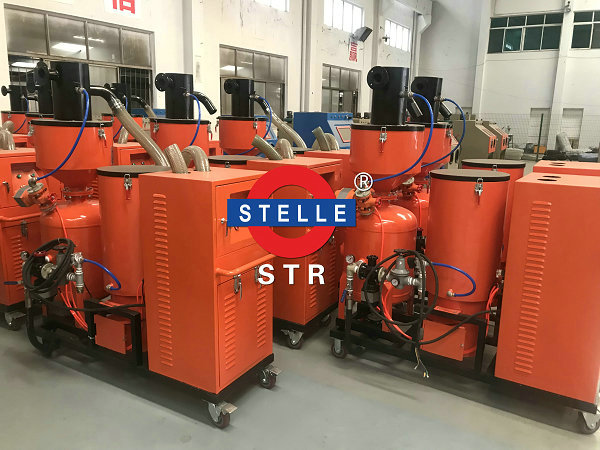

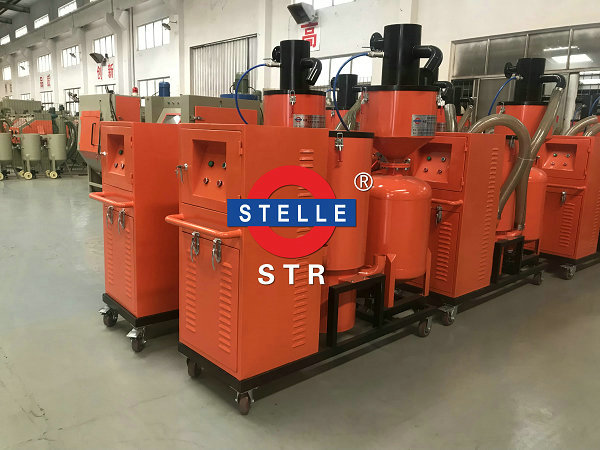

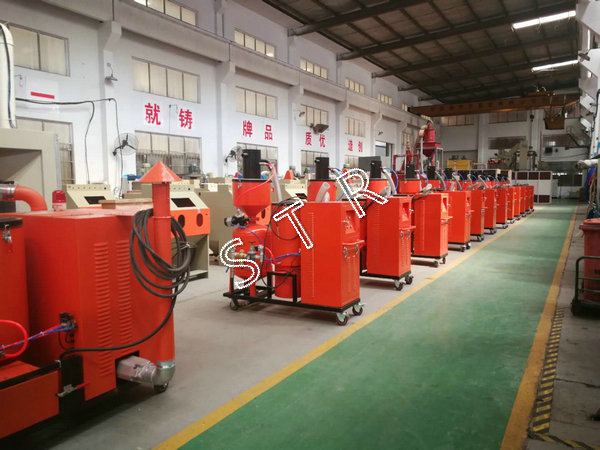

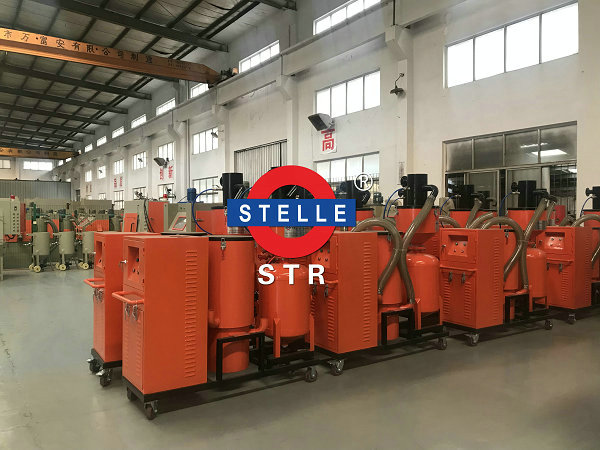

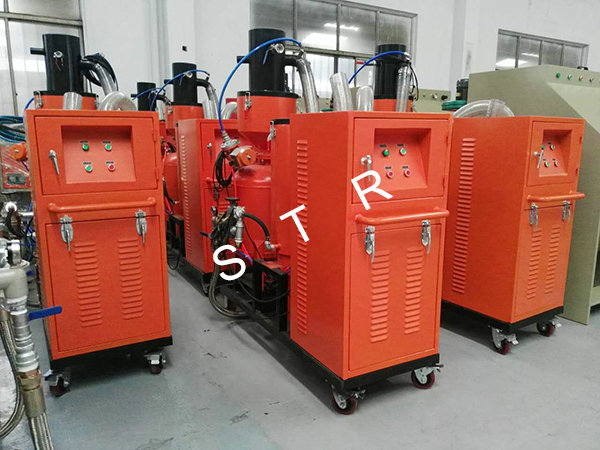

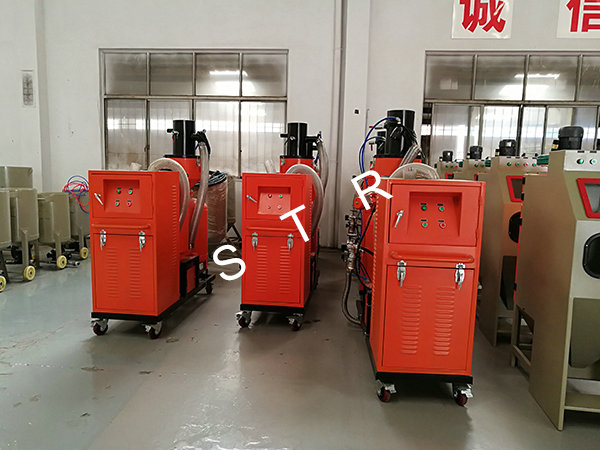

部份無塵自動循環環保型噴砂機案例:
