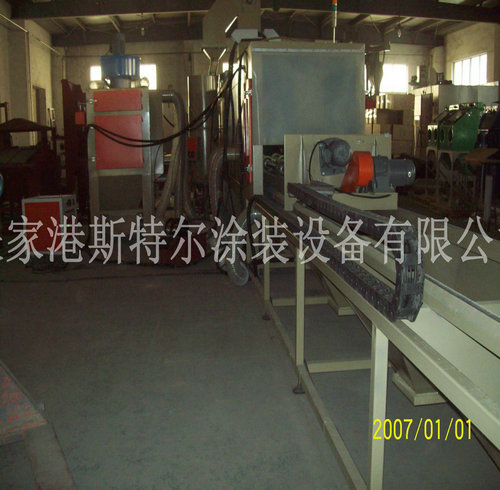

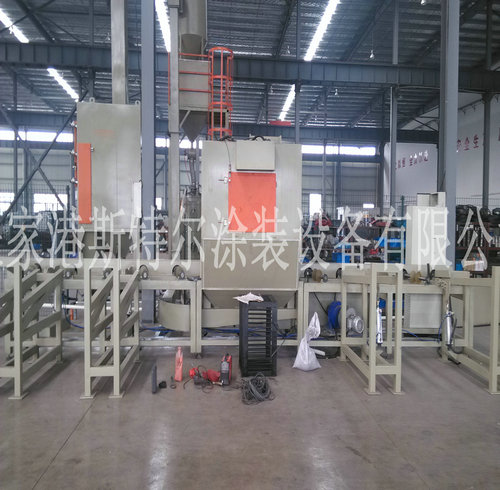

管道外壁自動噴砂機
◆適用人群位置 Applicable scope
管類鑄件,如:螺旋鋼管、螺紋鋼、支撐桿、擠出機螺桿、大柱體、圓筒狀類、柱體型產品;采取雙槍(可按標準多槍)及風暴式收塵器和光電科技傳器職能,不斷提高了加工速度及遠遠的減小了維修保養率。 (此形號需計劃)
The kind of pipe workpieces, such as: steel pipe, round steel, bars, screw, large cylindrical, cylinder, round the plant; Adopt double gun (according to demand more gun) and new filter and light electricity function, improve the production efficiency and reduce the maintenance rate. (the model need to customize)
◆常見技術水平參數值 Main technical parameters
機械型號查詢 Model |
STR-1500管道外壁自動噴砂機 |
STR-1800輥傳動雙槍自動噴砂機 |
工作的艙圖片尺寸 Working class size(mm) |
1000×900×900 |
1800×900×1000 |
服務器的尺寸 Complete machine size(mm) |
1200×900×2900 |
1900×900×2900 |
減小氧氣源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
電源開關 Power |
220v 50Hz |
220v 50Hz |
交流變頻交流電動機可控硅調壓器 Governor |
250W×2 |
250W×2 |
隔離器主軸電機 Separator motor |
380v 50Hz 4kw |
220v 50Hz 1.1kw |
分離出來器新風量 Air separator |
35m3/min |
35m3/min |
機械設備含量 Machine weight |
900kg |
900kg |
