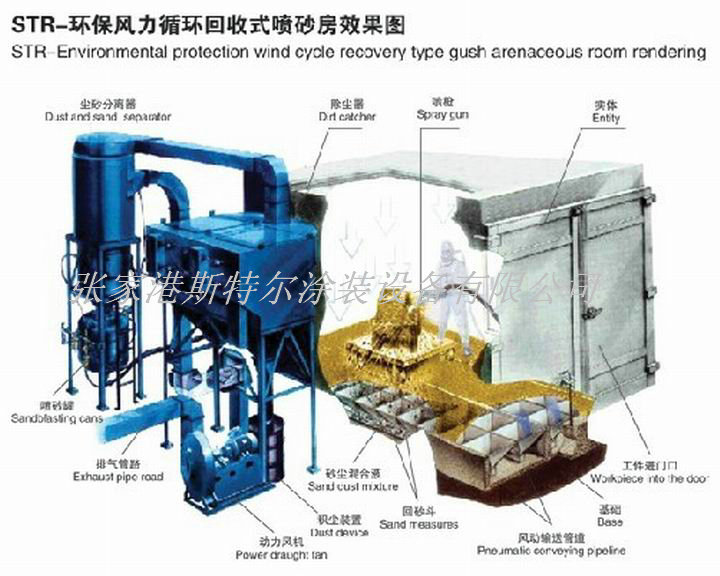

STR-環保風力循環回收式噴砂房效果圖

STR-Environmental protection wind cycle recovery sandblast room designsketch

◆噴砂（丸）房的組合而成體統

Composition of the sandblasting (shot) room system

1、崗位室  Studio

2、噴砂系統性  Sandblasting  system

3、耐磨材料收集平臺  Abrasive recycle system

4、抑塵模式  Dust removal system

5、產品傳送系統的  Workpiece conveying system

6、的控制體統  Control system

7、照明工程控制系統  Lighting system

 ◆用于比率 Applicable scope

專業鑄件鍛件、焊結鋼組成部分、電壓器水箱、建設項目自動化、電動車機動車、蒸氣鍋爐手工制造、化學工業自動化、港口碼頭修造等噴砂去銹。

Large castings and forgings welding steel structure, transformer oil tank, engineering machinery, locomotives, boiler manufacturing, chemical machinery, ship building blast cleaned, etc.

 ◆產品的特點 Product features

噴砂房是我公司在蜂窩地板技術的基礎上，自行開發、設計的環保型蜂窩式噴砂（丸）房，可按客戶的產品特性、噴砂要求等設計制作。蜂窩地板噴砂房是利用風機的風力為動力，將磨料通過回料管道吸送到旋風分離器中進行分離，最后進入噴砂系統循環利用。

Sandblasting room  is our company in introducing foreign advanced cell technology based on the floor, , the development, the design of the environmental protection cellular gush arenaceous (shot) room by ourselves, according to customers' product characteristics, sandblasting design requirements, etc. Cellular floor gush arenaceous room is the wind power by fan for abrasive materials, will back through the pipe to cyclone separator suction of separation and finally into gush arenaceous system recycling.

具備有下類顯著優點：

1、省去了常規噴砂房砂料輸送煤循環系統的螺旋輸送機，斗式提升機以及地下工程，不需建造地坑，節約了地基施工費用，大大節約了工程成本；

2、研磨材料環保再生資源回產出率高，更好地清換研磨材料；

3、主耍電器零件均適用出口好產品，具性能指標增強，健康靠譜，使用的質保期長，維持單純；

4、噴砂房室體內有高清晰的能見度，室體自然補風，節約能源消耗；

5、超聲波焊接機利用單級降塵，1、級利用風暴轉移器，二是級用濾蕊式降塵設備，其總降塵使用率多達99.99%之上；

6、在噴砂房正面房頂上部，配有“聲光報警系統”，在噴砂房內，配有急停呼叫按鈕；

7、各軟件模式化電子有效控制軟件模式適用互鎖有效控制，當其中的一軟件模式化存在告警時，關聯軟件模式化均止住上班，噴槍止住發射；

8、房體用于鋼結構建筑裝飾品制定，表面簡明扼要、漂亮、國家標準，降躁效用好，且裝高效快捷。

Advantages

1. Omitted conventional Sandblasting room sand conveying coal circulation system, screw conveyor a pattern lift machine and underground project, no need to build the pit and save foundation pit construction cost, greatly reduce the project cost;

2. high  abrasive recycle efficiency, easy to change abrasive;

3. The main electrical components are imported products, have the stable performance, safety and reliability, long life, easy maintenance;

4. Sandblasting room inside has high-resolution visibility, Chambers fill the wind, save energy natural consumption;

5. This machine use double levels of dust removing, the first level is the cyclone separator, the second type is filter dust removal system. Its total removal efficiency may reach above 99.99%;

6. In sandblasting room roof, equipped with a "positive upper sound-light alarm system", in the room, sandblasting with abrupt stop call button;

7. The electric control system uses interlock control, while one system malfunction, related system are to stop working, stop spraying gun;

8. Building decoration design room body appearance, simple , beautiful, standard, good noise reduction result  and convenient installation.
