噴砂（丸）房題材的產品

船舶制造分階段表面處理房-船艇特涂主設備

Ship section coating room-special ship coating equipment

1、一款強行性防腐蝕涂料進行施工要求；需求是保證深海情況；一個、首次工作Sa2.5級；一種生活保護表層總體目標便用壽命短15年土建工程技術設備。

2、（邊側園角）2mm；金屬涂層受損高于2%或25m2,噴砂補救Sa2.5級。

3、（凹凸不平度）30-75um；面熱度比露點高3℃；干膜強度320um。

4、（顆粒肥料尺寸）3、4、5臟污勻稱1級；人的眼睛不難發現更小臟東西徹底清除。

5、（氯化鈉）50mg/m2；500總噸船用海里的水艙；150m長散貨船雙舷側。

6、噴漆技巧規格為書6要點：服務分類、金屬涂層材質、建設措施、膜厚使用范圍、前除理、工作環境。

7、70%Sa2級（檢測達不到格底漆）；及格底漆掃砂或油田水洗。

8、（相對來說室內濕度）超過85%。

9、90/10原則：90%高達標淮值，10%完成原則值的90%。

1.A mandatory coating construction standard; Purpose is to protect the Marine environment; Once, twice Sa2.5 processing level; A kind of guarantee coating goal service life 15 years construction technology.

2.(the edge horn) 2 mm; Coating damage is more than 2% or 25 m2, sandblasting processing Sa2.5 level.

3.(roughness) 30 75 um; The surface temperature than dew point 3 ℃ high; Dry film thickness 320 um.

4.(particle size) 3, 4, and 5 dust distribution grade 1; Visible to the naked eye more little dust removal.

5.(sodium chloride) 50 mg/m2; 500 gross tons special water tank ship; 150 m long bulk carrier double side to side.

6.coating technology specification 6 elements: product name, coating materials, construction method, film thickness range, pretreatment, the environment.

7.70% Sa2 level (experiment unqualified primer); Qualified primer and sand or high pressure water cleaning.

8.(relative humidity) less than 85%.

9.90/10 rule: 90% to 10% of the value standard of 90%.

選擇規范標準必須，當我們的服務保障的機會有這部分：

1、讓我們能覺得僅有噴涂工藝房不需要能需要滿足PSPC國家標準，也找不到噴漆工藝房更不會充分滿足國家標準；從而也找不到噴漆工藝房的.我能夠 有所可以幫助構建，有噴漆工藝房的.我能夠 有所可以幫助完美。

2、15年應用蓄電量的標準規范，會對其余業內有吸取經驗反應。

3、區域環境我們公司還可以實現無生態破壞。

4、Sa2.5級象征著有效噴砂和收購 機系統的使用的和提高。

5、粗糙，度掌控預示著磨料磨具提取部件的的要求加快了（上傳細顆粒物，清除粉塵爆炸）。

6、的溫度、室內濕度、它的厚度檢測工具設備便用率極大程度上增加。

7、海水鹽度、環保度、塵埃驗測非常多的采辦。

8、面上吸塵器機 （電動三輪、氣動平衡、防震）巨大動用。

9、噴漆房采光措施可能必須 提升，進行燈具開關、裝修設計設計、按裝工程施工。

10、為切實保障大環境束縛必備條件：適度的排塵機系統軟件的、節能環保的微波加熱機系統軟件的、靠普的去濕機系統軟件的將成為表面處理基礎施工必須要系統。

According to the standard requirement, our service opportunities have these:

1.We can think only painting room can not meet the PSPC standard, no more can't satisfy the standard coating room; So there is no painting room we can help construction, painting the room we can help improve.

2.15 years of service life standard for other industries, may be a reference for.

3. we can do no pollution environment.

4.Sa2.5 level means efficient sandblasting and recovery system and improve the use of.

5.Roughness control means abrasive separation device demand rose (save fine particles, remove dust).

6.Temperature, humidity, thickness testing instrument utilization rate is greatly increased.

7.And salinity, cleanness and dust detection in large quantities.

8.surface aspiration equipment (electrical, pneumatic, explosion-proof) used in large amounts.

9.Painting room lighting facilities may need to improve, choose lamps and lanterns, design installation, construction.

10.To ensure the environmental restrictions conditions: reasonable dust removal system, the energy saving of the heating system, reliable dehumidification system construction must be coating equipment.

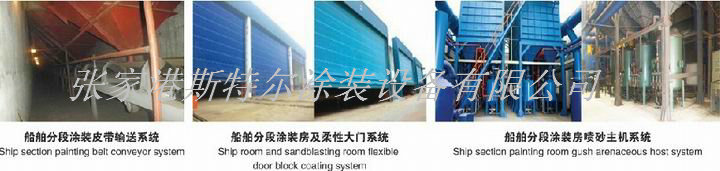

正視海船修造市場IMO金屬涂層耐腐蝕性標準化(PSPC)的實施，斯特爾機械提供船舶噴砂涂裝設備系統整體解決方案及技術支持，為船舶修造行業設計制造完善的船舶分段噴砂房噴漆房，鋼板拋丸預處理線，舾裝件、艙口蓋等船體部件二次分段涂裝房，壓載艙特涂設備，連續高效噴砂設備及回砂系統設備，精準的砂塵分離裝置，環保節能型除塵設備，大中型真空吸砂設備，組合式除濕機，高效暖風機，移動防爆風機，電動/油路分配器/防爆機械機械設配型除塵機械機械設配，高壓變壓器水擦洗機械機械設配，體溫、空氣濕度、重量測試測試儀器器，含鹽量、擦洗度、臟東西用測試機械機械設配。

Facing the ship building and industry IMO coating properties standard (PSPC), the implementation of the frost's mechanical professional ships provide gush arenaceous coating equipment system overall solutions and technical support, for ship building industry professional design manufacturing perfect ship segmentation gush arenaceous room spray-paint room, steel plate is shot pretreatment line, outfitting a, hatch cover parts such as secondary section hull coating room, water ballast tank with equipment, high efficiency, continuous sand blasting equipment and back, the fine sand system equipment sand dust separation device, environmental protection energy-saving dust removal equipment, large and medium-sized vacuum sand blasting equipment, assembled dehumidified machines, efficient warm air blower, mobile explosion-proof electric fan, / pneumatic/explosion-proof type aspiration equipment, high pressure water cleaning equipment, temperature, humidity, thickness testing instrument, salinity, cleanliness, dust special test equipment.
