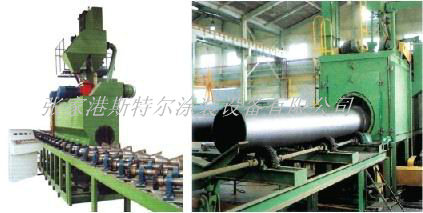

焊接鋼管前后壁拋噴丸請理機
◆設備共同點 Product features
鐵管外層拋丸消除機適用人群于大、中、小型的鐵管、瓶的外層治理和強化裝備、軸類自行翻轉視頻、自行奔跑，軸類的運行的速度快可結合軸類的請求進行適時進行調節，可設置成單管、雙管、3管、4管、遺傳變異后可處理超大管道配件、儲油罐，煤化工倉儲運輸罐企業公司來往車輛等。
The outer steel wall of shot cleaning machine is used in large, medium and small steel tube, the cylinder's surface treatment and strengthening, workpiece rotating, automatic walk, the operation speed according to the requirements can be adjusted, can design the single pipe, double tube, 3, 4 pipe, tube variation can be clean up after large-scale pipe, oil tank, chemical storage tank railway vehicles and so on.
◆主要的方法參數指標 Main technical parameters
|
清理垃圾無縫管寬度 Clean steel pipe size |
Φ300×5000mm |
拋丸器總量 The number of shot peening machie |
2臺 |
|
輥道使用速率 Roller speed |
1-5m/min |
拋丸器耗油率 Shot peening machie power |
11kw×2 |
|
彈丸直徑約 Projectile diameter |
Φ0.8-Φ1.2mm |
拋丸量 The number of shot peening |
250kg/min×2 |
|
再次彈丸放入量 The first projectile into amount |
800kg |
風扇葉片尺寸 Impellerdiameter |
Φ250mm |
|
進(出)料輥道尺寸 Length of material into(out) the roller |
5000mm |
扇葉轉速 Impeller speed |
2930r/min |
|
輥距 Roller dimension |
400mm |
拋射加速度 Aerosol propellant speed |
60-70m/s |
|
承重容量 Load weight |
30kg/m |
升級機工作電壓 Hoist machine power |
3kw |
|
擺線減速時機瓦數 Cycloidal reducer power |
2.2kw |
大幅提升量 Ascension of |
30/h |
|
吸附布袋條數 The number of filter bag |
36條 |
剝離量 Separation of |
30t/h |
|
過慮布袋規格 Specification of filter bag |
Φ120×5000mm |
豎向螺旋式功效Longitudinal spiral power |
3kw |
|
操作功率 Processing air volume |
9800m3/h |
輸送管量 Throughput |
30t/h |
|
除塵處理羅茨風機額定功率 Dust electromotor power |
5.5kw |
總工作功率 Total power |
37kw左右時間 |
|
振打三相異步電機額定功率 Vibration motor power |
0.75kw |
專用設備樣貌長寬高 Shape dimension |
15000×4600×5000mm |
